Breakout Sliding Doors

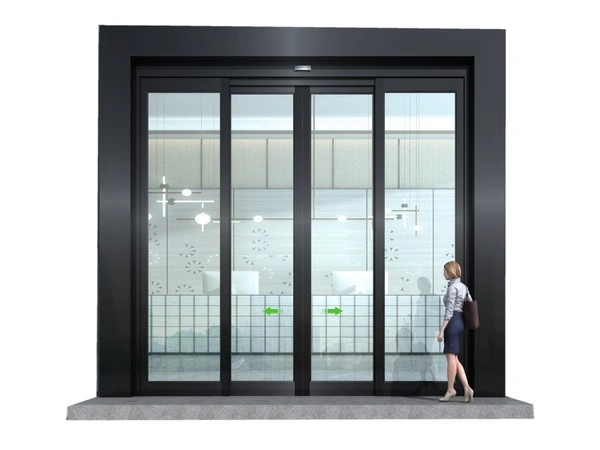

Breakout Automatic Sliding Door

Framed/Frameless, Automatic Pedestrian Doors

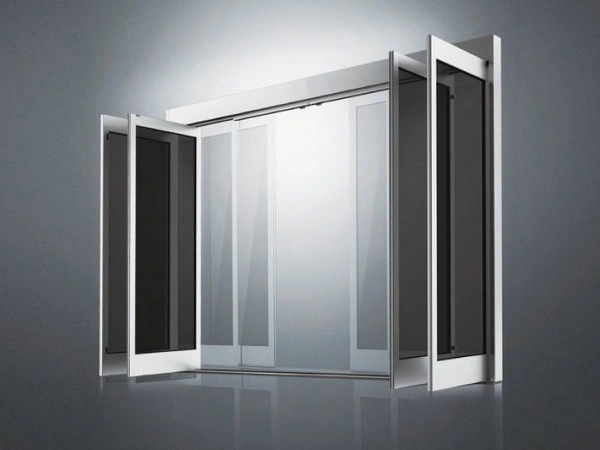

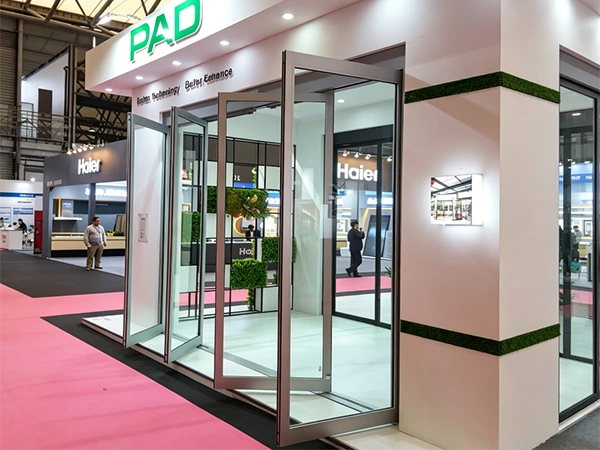

Breakout automatic sliding doors work as regular automatic sliding doors for daily access, while adding an emergency evacuation function when needed. In case of an emergency, both the moving panels and fixed panels can swing open up to 90° to create a wider exit route. The frame is made of high-strength 6063-T5 aluminum alloy, giving the door a solid structure while keeping the overall appearance clean and simple. The exterior cladding can be customized, and fire-resistant tempered glass is available for projects that need stronger safety protection.

Contact Us
Customization Services
01
Customization Options
  • Surface Finish: Fluorocarbon coating, stainless steel cladding, or copper cladding
  • Glass Color: Standard glass or ultra-clear glass
  • Glass Type: Laminated glass, insulated glass, or tempered glass
  • Other Customizations: Frame dimensions, glass specifications, frame color, access control accessories, and other details can be adjusted according to the project requirements.
02
Customization Process
  1. 01

    Customer provides the project information

  2. 02

    Design proposal prepared within 24 hours

  3. 03

    Drawing confirmation

  4. 04

    Product sample provided and confirmed if needed

  5. 05

    Production takes around 20–30 days

  6. 06

    Finished revolving door delivered to the port within 1–2 hours

  7. 07

    Customer receives the goods

  8. 08

    After-sales support begins

Technical Specifications
  • Max. Door Weight 150 kg
  • Clear Opening Width Single 1200 mm / Double 2400 mm
  • Max. Door Height 3000 mm
  • Drive Motor Brushless 24 V DC, 60 W
  • Transmission Type Gearbox + HTD Synchronous Belt (150S8M)
  • Power Supply 110–250 V AC, 50/60 Hz
  • Max Opening Speed 500 mm/s
  • Closing Speed Single 350 mm/s, Double 300 mm/s
  • Creep Speed 30–100 mm/s
  • Hold-open Time 0–9 s (adjustable)
  • Closing Force 300 N
  • Manual Push Force < 100 N
  • Acoustic Noise Level ≤ 60 dB (measured at 1m)
  • Ambient Temperature −20 °C to +50 °C
  • Total Power Consumption 75 W

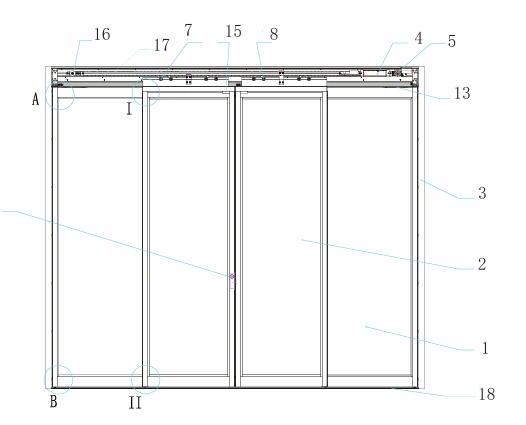

Main Components
Main Components
  1. 01

    Fixed Leaf Components

  2. 02

    Movable Leaf Components

  3. 03

    Door Panels/Door Assembly

  4. 04

    Electrical Components

  5. 05

    Drive Motor (Brand Dunkermotoren)

  6. 06

    Hook Lock and Hardware

  7. 07

    Rollers

  8. 08

    Anti-Off Rollers

  9. 09

    Connecting Lever for Movable Leaf

  10. 10

    Anti-Off Rollers for Movable Leaf

  11. 11

    Upper Pivot Seat for Fixed Leaf

  12. 12

    Bottom Pivot Seat for Fixed Leaf

  13. 13

    Fixed Leaf Pull Rod

  14. 14

    Floor Pivot Seat and Floor Pivot

  15. 15

    Leaf Hook Components

  16. 16

    Pulleys

  17. 17

    Drive Belt

  18. 18

    Surface Floor Track

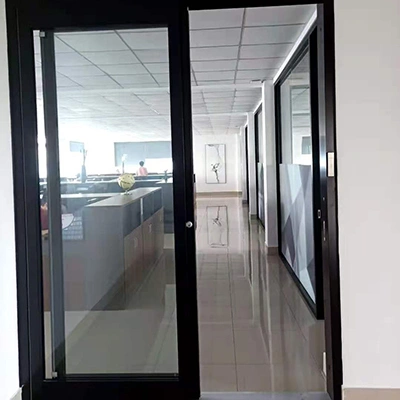

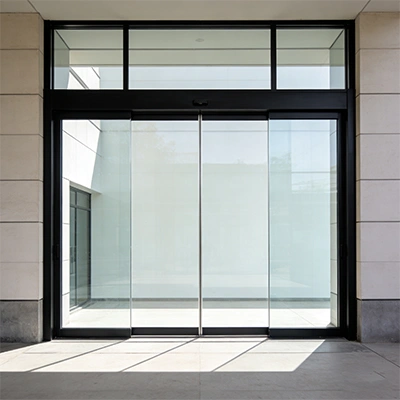

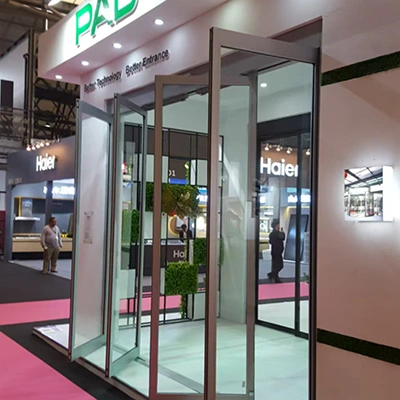

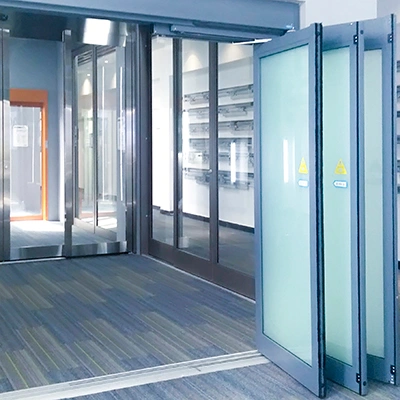

Applications

Breakout automatic sliding doors are suitable for busy public and commercial entrances that need daily pedestrian access and emergency evacuation support, including:

  • Shopping malls and supermarkets
  • Cinemas and stadiums
  • Airports, high-speed rail stations, and metro stations
  • Hospital ward buildings
  • School teaching buildings
  • Production workshops and large warehouses
  • High-rise residential buildings and older residential communities
  • Hotels
  • Applications
  • Applications
  • Applications
  • Applications
Certifications

ISO 9001 and ISO 14001 certifications are available, along with related test reports
