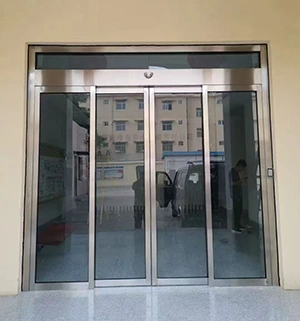

Heavy Duty Automatic Sliding Door Opener

Video

Heavy-duty automatic sliding door operators are engineered for demanding applications where door size, weight, and traffic volume exceed the requirements of standard automatic door systems. Suitable for commercial building entrances, hotels, office towers, airports, transportation hubs, and other public facilities, the system delivers smooth operation and reliable performance.

The operator integrates the drive system, controller, and auxiliary control equipment into a complete automation solution. Depending on project requirements, it can be connected to activation devices, access control systems, safety devices, centralized control systems, and building automation platforms. By matching the operator configuration to the door dimensions, operating conditions, and traffic requirements of each project, the system helps ensure stable operation and long-term service life.

Track lengths, access control accessories, and selected system components can also be customized to suit specific installation requirements.

Technical Specifications

DTC300 Heavy-Duty Automatic Sliding Door Operator

Door Configuration	Single-leaf (Single-slide) / Double-leaf (Bi-parting)
Max. Leaf Weight	Single-slide: 1 × 300 kg / Bi-parting: 2 × 250 kg
Rated Power	150 W
Max. Opening Speed	400 mm/s
Max. Closing Speed	350 mm/s
Hold-Open Time	0–15 s (adjustable)
Operating Voltage	24 V DC
Ambient Temperature	-20°C to +60°C
Interlocking Function	Integrated (Dual-door interlock)
Secondary Activation Logic	Integrated (Primary/Secondary sensor control)
Fire Alarm Interface	Integrated (Emergency break-out/open link)
Sensor Configuration	Internal & External Radar Sensors Included

DTC500 Heavy-Duty Automatic Sliding Door Operator

Door Configuration	Single-leaf (Single-slide) / Double-leaf (Bi-parting)
Max. Leaf Weight	Single-slide: 1 × 500 kg / Bi-parting: 2 × 400 kg
Rated Power	150 W
Max. Opening Speed	400 mm/s
Max. Closing Speed	350 mm/s
Hold-Open Time	0–15 s (adjustable)
Operating Voltage	24 V DC
Ambient Temperature	-20°C to +60°C
Interlocking Function	Integrated (Dual-door interlock)
Secondary Activation Logic	Integrated (Primary/Secondary sensor control)
Fire Alarm Interface	Integrated (Emergency break-out/open link)
Sensor Configuration	Internal & External Radar Sensors Included

DTC1000 Heavy-Duty Automatic Sliding Door Operator

Door Configuration	Single-leaf (Single-slide) / Double-leaf (Bi-parting)
Max. Leaf Weight	Single-slide: 1 × 1000 kg / Bi-parting: 2 × 800 kg
Rated Power	180 W
Max. Opening Speed	400 mm/s
Max. Closing Speed	350 mm/s
Hold-Open Time	0–15 s (adjustable)
Operating Voltage	24 V DC
Ambient Temperature	-20°C to +60°C
Interlocking Function	Integrated (Dual-door interlock)
Secondary Activation Logic	Integrated (Primary/Secondary sensor control)
Fire Alarm Interface	Integrated (Emergency break-out/open link)
Sensor Configuration	Internal & External Radar Sensors Included

DTC2000 Heavy-Duty Automatic Sliding Door Operator

Controller Specifications	Motor Compatibility		Permanent Magnet Synchronous Motor (PMSM)
	Output	Rated Output Voltage	3-phase, 0–230 V AC
		Overload Capacity	150% of rated current for 1minute
	Input Power	Supply Voltage / Frequency	Single-phase, 200–230 V AC, 50/60 Hz
		Voltage Tolerance	-15% to +10% of rated input voltage
		Frequency Tolerance	±5% of rated input frequency
		Brownout Protection	Continuous operation above 165 V AC, stays operational for 15 ms if below 165 V AC
Motor Specifications	speed	Speed Range	0–180 rpm
		Speed Display	Digital LED / LCD Display
		Speed Resolution	1 rpm
	Control Mode		Sine-wave Vector Control (FOC)
	Rated Power		200 W
	Rated Torque		18 N·m
	Ingress Protection		IP54

DTC3000 Heavy-Duty Automatic Sliding Door Operator

Controller Specifications	Motor Compatibility		Permanent Magnet Synchronous Motor (PMSM)
	Output	Rated Output Voltage	3-phase, 0–230 V AC
		Overload Capacity	150% of rated current for 1minute
	Input Power	Supply Voltage / Frequency	Single-phase, 200–230 V AC, 50/60 Hz
		Voltage Tolerance	-15% to +10% of rated input voltage
		Frequency Tolerance	±5% of rated input frequency
		Brownout Protection	Continuous operation above 165 V AC, stays operational for 15 ms if below 165 V AC
Motor Specifications	speed	Speed Range	0–180 rpm
		Speed Display	Digital LED / LCD Display
		Speed Resolution	1 rpm
	Control Mode		Sine-wave Vector Control (FOC)
	Rated Power		370 W
	Rated Torque		23 N·m
	Ingress Protection		IP54

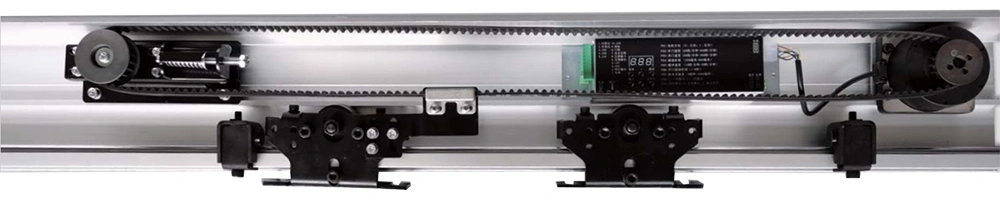

Main Components

Motor
Controller
Hanger Assembly
Power Supply
End Pulley
Track Rail
Drive Belt
Remote Control

Certifications and Test Reports

CE, ISO 9001, ISO 14001, DTC Heavy-Duty Automatic Sliding Door System Test Report
