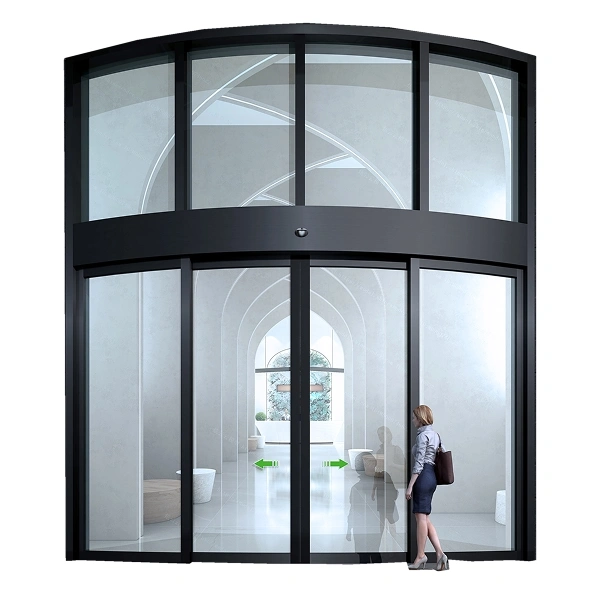

Curved Sliding Doors
Curved sliding doors provide a smooth, unobstructed pathway, allowing pedestrians to enter and exit easily while giving the entrance a sense of openness. These sliding entrance systems run quietly thanks to an integrated motor, controller, trolley system, and synchronous belt drive that follow the curved track. Energy-efficient operation and noise reduction are built into the motor and drive components, ensuring smooth, reliable movement even in high-traffic areas such as hotels, shopping centers, and office buildings.
Customization Options
- Glass Options: Standard glass or ultra-clear glass
- Surface Finish: Fluorocarbon coating, stainless steel cladding, or copper cladding
- Backup Power: Optional backup power is available for projects that require support during power interruptions
Revolving doors and cylindrical portals can be customized to the entrance layout, including the door size, finish, color, and glass specifications. If the project has special requirements, our team can review the site conditions and suggest a configuration that fits the space and daily access needs.
Customization Process
- 01
Customer provides the project information
- 02
Design proposal prepared within 24 hours
- 03
Drawing confirmation
- 04
Product sample provided and confirmed if needed
- 05
Production takes around 20–30 days
- 06
Finished revolving door delivered to the port within 1–2 hours
- 07
Customer receives the goods
- 08
After-sales support begins
- Power Supply AC 220 V, 0.6 A × 2, 50 Hz
- Power Consumption Standby: 45 W, Operating: 120–300 W
- Total Rated Power 200–300 W
- Drive Motor Power AC 220 V, 50 Hz, 80 W × 2
- Lighting LED 18 W (6×3 W) / Halogen 120 W (6×20 W)
- Speed Control Digital VFD stepless control, 100 to 500 mm/s
- Ambient Temperature -30 °C to +50 °C
- Door Weight 800–1800 kg (depending on dimensions)
The door leaves automatically reverse if they encounter an obstacle, preventing impacts.
The door structure helps block wind, dust, noise, and heat transfer, improving comfort near the entrance.
Locking functions allow the door to be secured when needed.
Adjustable speed lets the door operate smoothly according to pedestrian flow and entrance requirements.
The curved shape fits entrances with rounded or glass façade designs, such as hotels, airports, and commercial complexes.
The door has no sharp corners, so the entrance looks smoother, more open, and better connected with the building style.
When the revolving doors are fully open, they create a passage up to 40% wider than standard swing doors.
Ideal for people that are carrying luggage, pushing strollers, or handling sudden surges of visitors during events and exhibitions.
The curved track reduces friction as the door moves, helping the motor use about 15% less energy than standard swing doors.
Tighter sealing strips block outdoor noise and limit air exchange, reducing heating and cooling energy consumption.
Rounded door panels eliminate sharp corners, reducing the risk of injury from collisions.
Doors slide along the curved track, taking up no extra space indoors or outdoors when opening.
Perfect for narrow entrances or areas with furniture or decorative elements.

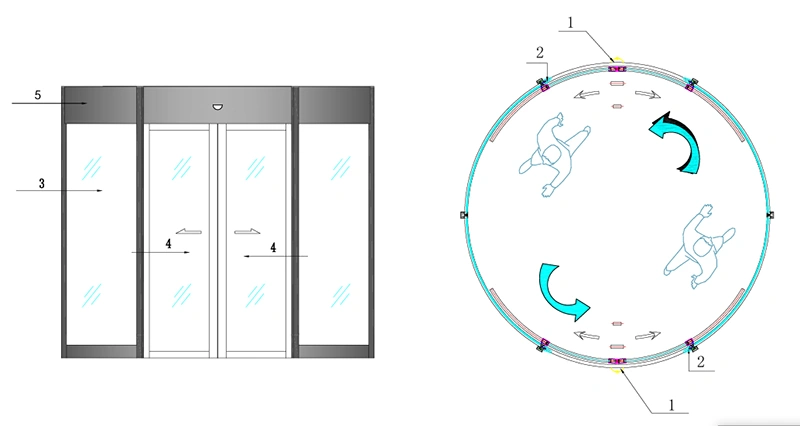

- 01
Motion Sensor
- 02
Anti-Collision Rubber Strip
- 03
Outer Wall Glass
- 04
Moving Door Leaf
- 05
Header / Top Rail
PARD-FC1000A/PARD-FC1000B Full-Circle Curved Automatic Sliding Door
Dimensions (mm)
| Internal Diameter | External Diameter | Clear Passage Height | Canopy Height | Opening Width |
| 2,800 | 2,961 | 2,200–4,000 | 160–1,000 | 1,280 |
| 3,000 | 3,161 | 2,200–4,000 | 160–1,000 | 1,380 |
| 3,200 | 3,361 | 2,200–4,000 | 160–1,000 | 1,480 |
| 3,400 | 3,561 | 2,200–4,000 | 160–1,000 | 1,580 |
| 3,600 | 3,761 | 2,200–3,800 | 160–1,000 | 1,680 |
| 3,800 | 3,961 | 2,200–3,600 | 160–1,000 | 1,780 |
PARD-HC1000A/PARD-HC1000B/PARD-HC1000C Semi-Circular Automatic Sliding Door
Dimensions (mm)
| Internal Diameter | External Diameter | Clear Passage Height | Canopy Height | Opening Width |
| 2,800 | 2,961 | 2,200–4,000 | 160–1,000 | 1,280 |
| 3,000 | 3,161 | 2,200–4,000 | 160–1,000 | 1,380 |
| 3,200 | 3,361 | 2,200–4,000 | 160–1,000 | 1,480 |
| 3,400 | 3,561 | 2,200–4,000 | 160–1,000 | 1,580 |
| 3,600 | 3,761 | 2,200–3,800 | 160–1,000 | 1,680 |
| 3,800 | 3,961 | 2,200–3,600 | 160–1,000 | 1,780 |

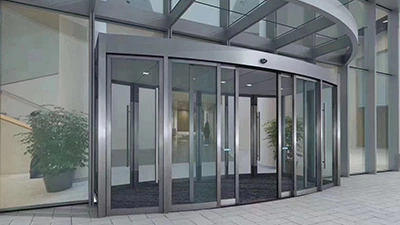

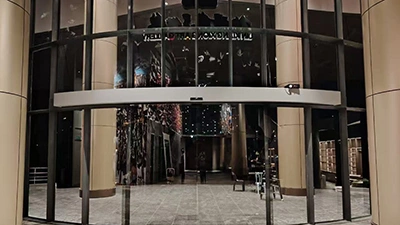

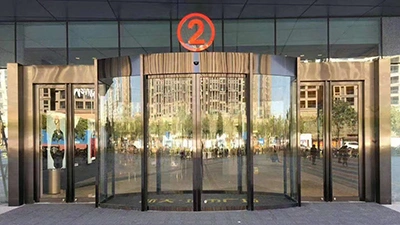

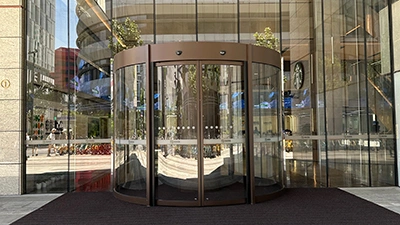

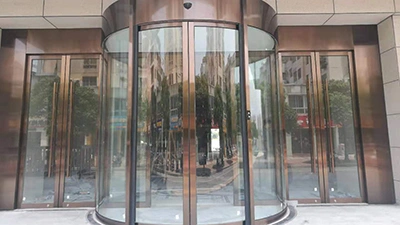

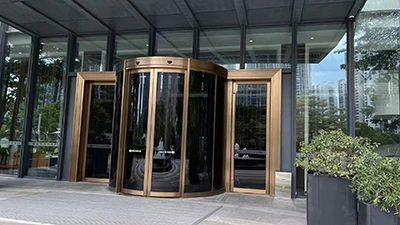

Fully curved automatic sliding doors are suitable for hotel lobbies, flagship store entrances, science museums, and exhibition halls.
Semi-circular automatic sliding doors are suitable for bubble tea shops, boutique stores, meeting rooms, and private offices.
