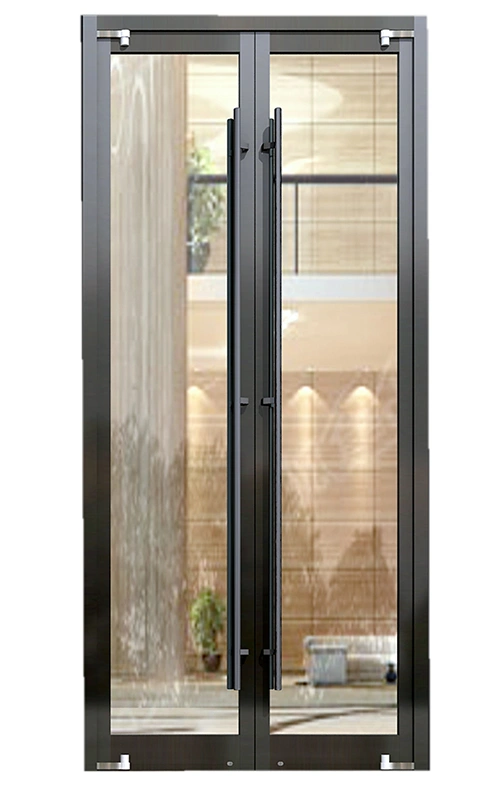

Balanced Door

Balanced Doors

Balanced doors use wind pressure to reduce the force needed to open large exterior entrances. Unlike standard doors that require more effort against strong outdoor winds, these doors have a hidden sliding pivot arm between the door leaf and frame. The pivot design uses pressure differences to allow the door to open easily even in high-wind conditions, and the hardware ensures smooth closing.

All pivots and closing devices are installed discreetly, keeping the door visually clean while ensuring durability and low maintenance. Repairs can be done without removing the door, and the system can be customized for different sizes, materials, and finishes. Balanced doors can accommodate large leaves/wings up to 8 meters high and 1.8 meters wide, which is suitable for high-end building façades.

Customization Services
01
Customization Options
  • Surface Finish: Fluorocarbon coating, stainless steel cladding, or copper cladding
  • Glass Color: Standard or ultra-clear
  • Glass Type: Laminated, tempered, or insulated
  • Other Customizations: Sizes, colors, glass specifications, and any other special requirements can be discussed with our team
02
Customization Process
  1. 01

    Customer provides the project information

  2. 02

    Design proposal prepared within 24 hours

  3. 03

    Drawing confirmation

  4. 04

    Product sample provided and confirmed if needed

  5. 05

    Production takes around 20–30 days

  6. 06

    Finished revolving door delivered to the port within 1–2 hours

  7. 07

    Customer receives the goods

  8. 08

    After-sales support begins

Technical Specifications
Door Frame Aluminum alloy with fluorocarbon coating; stainless steel cladding
Door Leaf (with Glass) Aluminum alloy with fluorocarbon coating
Insulated Glass 6+12A+6 mm; 8+12A+8 mm, with stainless steel cladding
Single Glass 12 mm; 15 mm
Laminated Glass 6+1.52+6 mm
Profile Door Lock Lock cover: 304 brushed stainless steel; Body: zinc alloy (white zinc finish)
Pivot Shaft (with Upper & Lower Pivot Arms) Stainless steel (natural) + brushed stainless steel
Top Pivot Brushed stainless steel
Bottom Pivot Brushed stainless steel
Guide Wheel Q235 steel with zinc plating + black POM
Stopper/Limit Device Black engineering plastic
Plug Pin Brushed stainless steel
Handle 304 brushed stainless steel

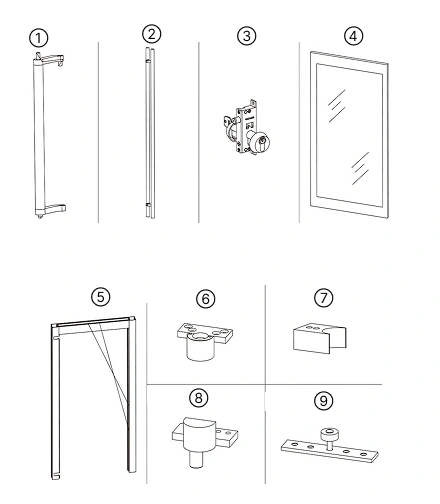

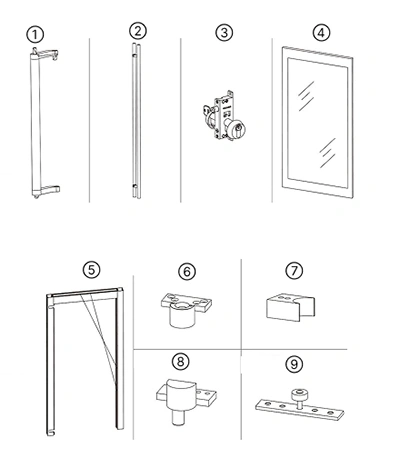

Main Components
Main Components
  1. 01

    Pivot Shaft

  2. 02

    Door Handle

  3. 03

    Door Lock

  4. 04

    Door Leaf

  5. 05

    Door Frame

  6. 06

    Top Pivot

  7. 07

    Stopper/Limit Device

  8. 08

    Bottom Pivot

  9. 09

    Guide Wheel

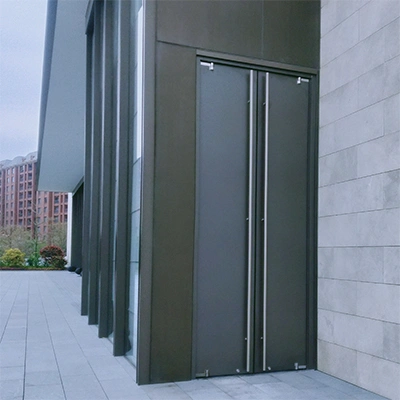

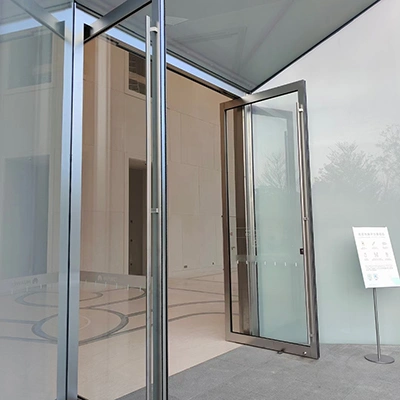

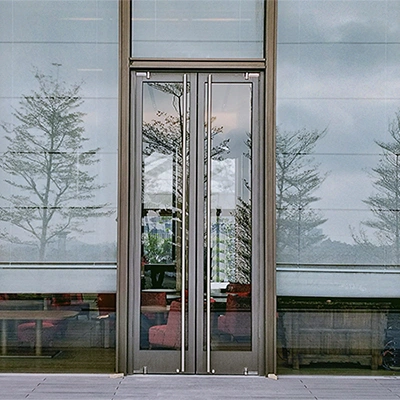

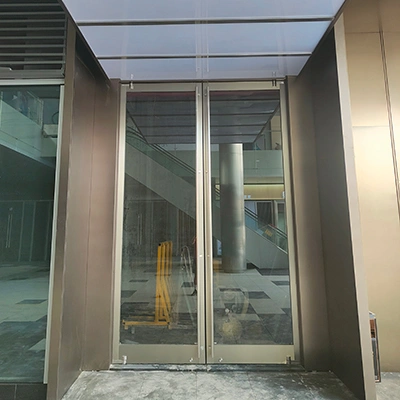

Applications

Balanced doors are often used at busy entrances in commercial buildings, airport terminals, and high-speed rail stations, especially for street-facing areas, windy locations, or entrances that need better sealing.

Applications Applications Applications Applications
