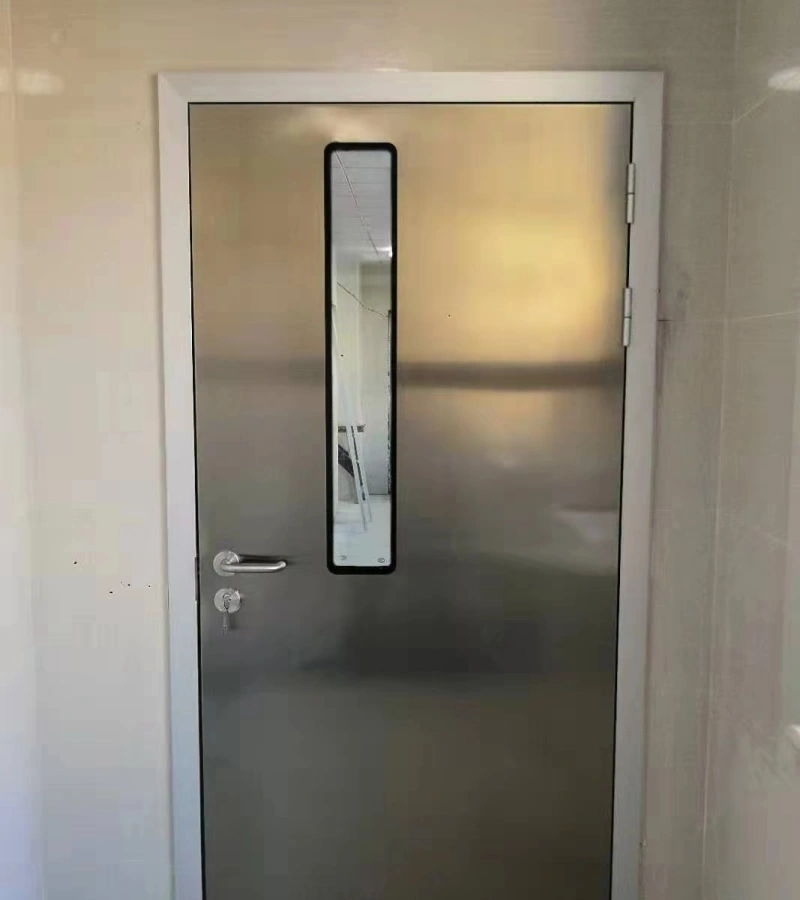

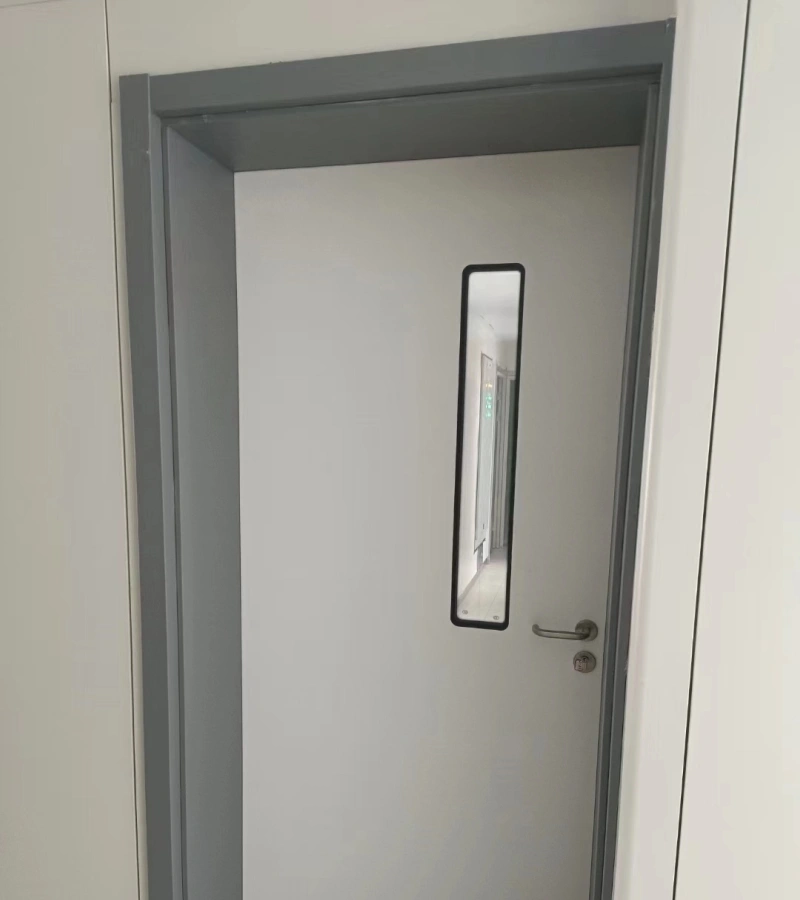

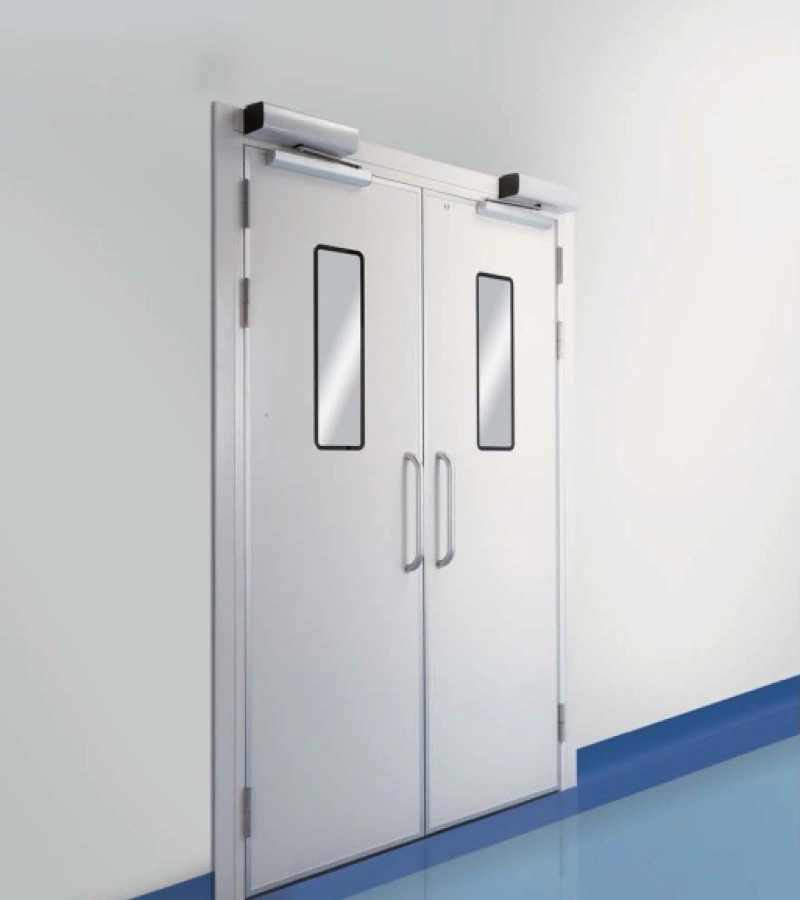

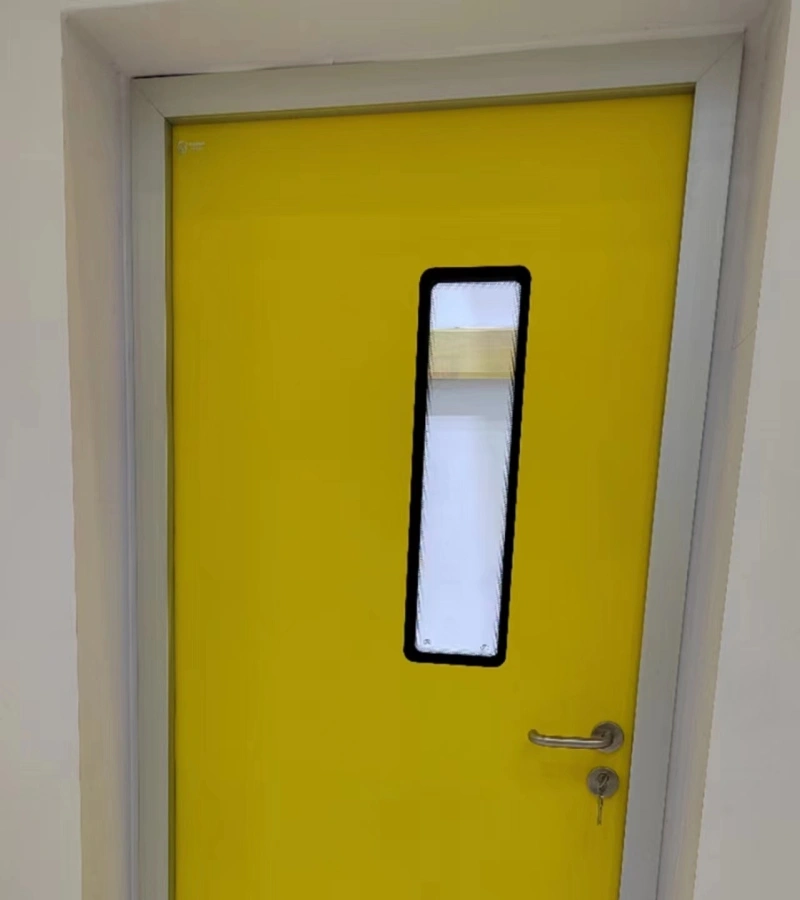

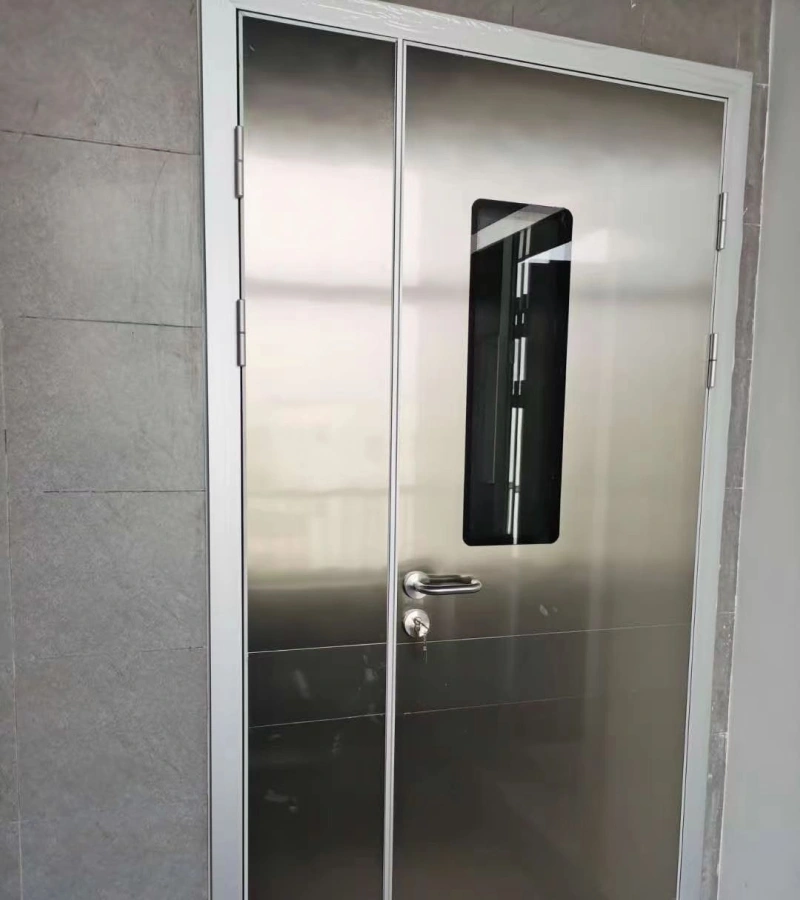

Hermetic Swing Door
Hermetic swing doors provide high-performance, high-efficiency entrance solution for areas with heavy traffic. Built for operating theatres, treatment rooms, laboratories, and other controlled spaces, the swing doors combine airtight sealing, clear visibility, and convenient access in a single solution.
- A high-strength glass vision panel provides a clear view of the room interior, allowing medical staff to easily monitor conditions inside wards, treatment rooms, and other controlled spaces. The frame is available in powder-coated aluminum alloy or stainless steel to suit different project requirements.
- The sliding door operates quietly and smoothly, creating a clean, professional, and transparent entrance solution for hospitals, laboratories, cleanrooms, and similar facilities.
- Excellent airtight performance helps meet the sealing requirements of clean spaces and supports controlled indoor conditions.
- Multiple access and activation methods are available, including infrared sensors, foot switches, hand wave sensors, keypad entry systems, and other control options to suit different operational needs.
Customization Details
- Operation type: Manual or automatic
- Surface finish: Galvanized steel sheet or stainless steel sheet
- Accessories: Foot switches, hand wave sensors, push-button switches, keypad access control systems, and safety beam sensors
- Handle options: Flush handles or stainless steel pull handles
- Additional customization: Door material, door leaf dimensions, vision panel size, colors, glass specifications, and other project-specific requirements are available upon request.
Customization Process
- 01
Customer provides the project information
- 02
Design proposal prepared within 24 hours
- 03
Drawings confirmation
- 04
Product sample provided and confirmed if needed
- 05
Production completed within 14–20 days
- 06
Finished swing door delivered to the port within 1–2 hours
- 07
Customer receives the goods
- 08
After-sales support begins
- Opening Angle 0° to 110°
- Max. Door Weight 150 kg
- Opening Speed 250–500 mm/s
- Closing Speed 250–500 mm/s
- Hold-Open Time 1–20 s (adjustable)
- Manual Push Force (Power Off) < 30 N
- Power Consumption < 50 W
| Structural Opening Width | Structural Opening Height | Door Leaf Height | Clear Opening Width | Clear Opening Height |
| 800 | 2,100 | 2,048 | 716 | 2,058 |
| 900 | 2,100 | 2,048 | 816 | 2,058 |
| 1,000 | 2,100 | 2,048 | 916 | 2,058 |
| 1,100 | 2,100 | 2,048 | 1,016 | 2,058 |
| 1,200 | 2,100 | 2,048 | 1,116 | 2,058 |
| 1,300 | 2,100 | 2,048 | 1,216 | 2,058 |
| 1,400 | 2,100 | 2,048 | 1,316 | 2,058 |
| 1,500 | 2,100 | 2,048 | 1,416 | 2,058 |
Note: Above specs for reference only; dimensions customizable.
- Antibacterial surface: The door is available with antibacterial coatings or stainless steel construction to help reduce the risk of cross-contamination.
- Airtight sealing: Dedicated sealing strips around the frame help contain airborne particles, odors, and contaminants within the room.
- Fire-resistant design: Built to meet medical facility fire safety requirements, helping slow the spread of fire and smoke during emergencies.
- Accessible passage: For door widths of 1.1 m or above, unequal double-door configurations are available to accommodate wheelchairs, hospital beds, and medical equipment.
- Impact-resistant Construction: Rounded door edges and protective bumper strips help reduce damage from carts, beds, and other equipment used in daily hospital operations.
- Touch-free operation: Compatible with sensors and foot switches, allowing staff to open the door without direct hand contact.
- Easy to clean: Smooth surfaces and minimal dirt traps simplify routine cleaning and disinfection.
- Quiet operation: Silent hinges and damping components help keep operating noise below 40 dB, creating a quieter environment for patients and staff.
- Built for frequent use: The reinforced door structure is designed for repeated daily operation and maintains stable performance even under frequent opening and closing cycles.

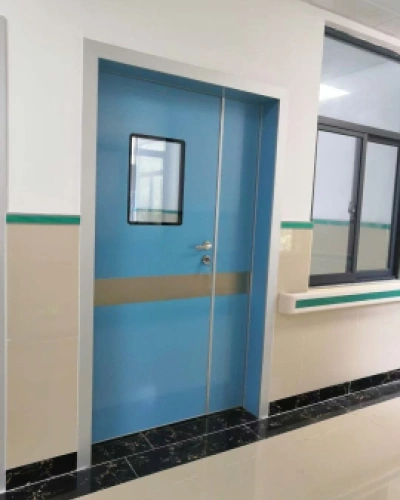

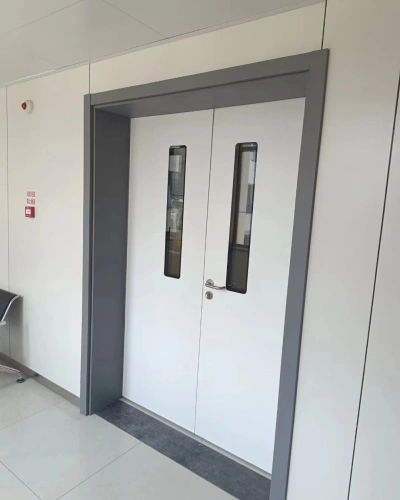

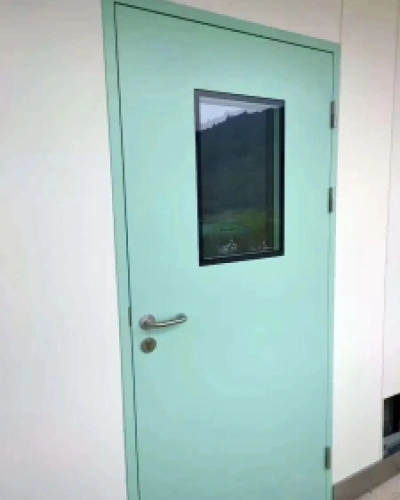

Hermetic swing doors are widely used in hospitals, cleanrooms, laboratories, and other environments where airtight sealing, cleanliness control, and contamination prevention are important. The sliding doors are suitable for operating theatres, treatment rooms, isolation rooms, pharmaceutical facilities, research laboratories, and various controlled spaces with strict hygiene and environmental requirements.
ISO 9001, ISO 14001, and EU airtight testing report EN 12207
