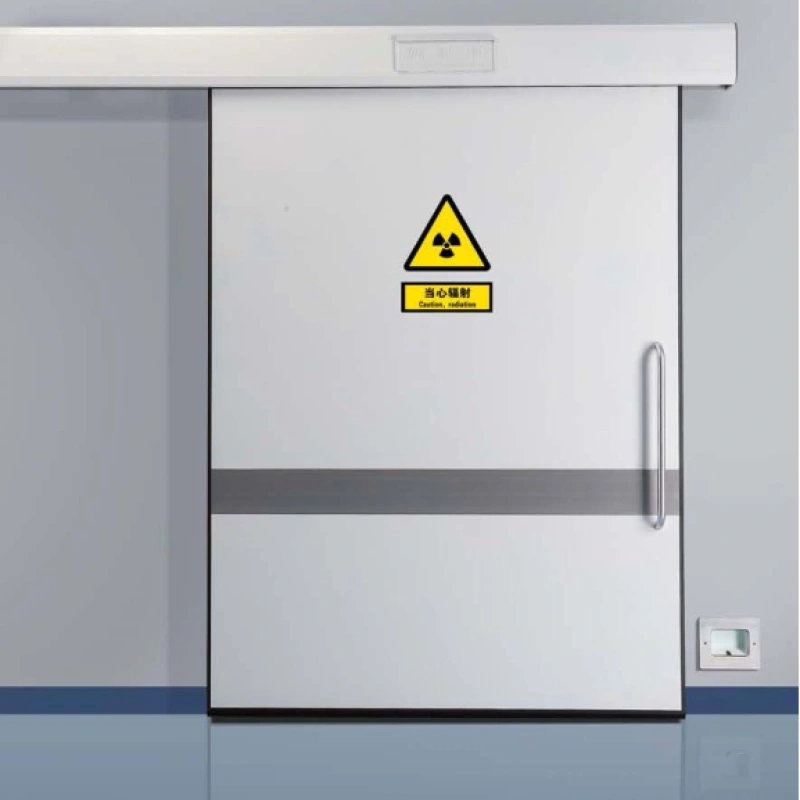

Lead Lined Doors
Lead lined doors provide a reliable radiation shielding solution for medical, industrial, research, and high-security facilities. Designed for X-ray rooms, imaging centres, radiology departments, laboratories, veterinary clinics, nuclear facilities, and other radiation-controlled areas, the lead doors help contain radiation and support a safer working environment. Combining effective shielding performance with durable construction, they are perfect for meeting radiation proof requirements.
Customization Details
- Surface finish: Galvanized steel sheet or stainless steel sheet
- Door type: Sliding or swing door
- Vision panel: Optional viewing window sizes available
- Activation methods: Foot switches, hand wave sensors, keypad access systems, and other automatic opening options
- Custom dimensions: Door sizes can be customized according to the opening dimensions of the room
- Additional customization: Door type, dimensions, colors, vision panel specifications, and other project-specific requirements are available upon request.
Customization Process
- 01
Customer provides the project information
- 02
Design proposal prepared within 24 hours
- 03
Drawing confirmation
- 04
Product sample provided and confirmed if needed
- 05
Production takes around 20–30 days
- 06
Finished revolving door delivered to the port within 1–2 hours
- 07
Customer receives the goods
- 08
After-sales support begins
- Opening Speed 250–500 mm/s
- Closing Speed 250–500 mm/s
- Hold-Open Time 2–20 s (adjustable)
- Closing Force > 70 N
- Manual Opening Force < 100 N
- Total Power Consumption < 150 W
| Structural Opening Width | Structural Opening Height | Door Leaf Width | Door Leaf Height | Clear Opening Width |
| 1,000 | 2,100 | 1,200 | 2,180 | 1,000 |
| 1,100 | 2,100 | 1,300 | 2,180 | 1,100 |
| 1,200 | 2,100 | 1,400 | 2,180 | 1,200 |
| 1,300 | 2,100 | 1,500 | 2,180 | 1,300 |
| 1,400 | 2,100 | 1,600 | 2,180 | 1,400 |
| 1,500 | 2,100 | 1,700 | 2,180 | 1,500 |
| 1,600 | 2,100 | 1,800 | 2,180 | 1,600 |
| 1,700 | 2,100 | 1,900 | 2,180 | 1,700 |
Note: Above specs for reference only; dimensions customizable.
- Effective radiation shielding: Integrated lead panels help block X-rays, gamma rays, and other forms of radiation. Protection levels can be configured to meet the requirements of medical and industrial applications.
- Full perimeter sealing: Lead-lined rubber seals around the frame help create a tightly sealed barrier when the door is closed, reducing the risk of radiation leakage.
- Automatic operation: Multiple activation methods are available, including foot switches, hand wave sensors, and keypad access systems, helping reduce unnecessary contact during daily use.
- Anti-pinch protection: Infrared safety sensors detect obstacles during operation. The door automatically stops or reverses when an obstruction is detected.
- Noiseless performance: Silent tracks and low-noise drive systems keep operating noise below 50 dB, supporting a more comfortable diagnostic and treatment environment.
- Integrated installation system: Supplied with a dedicated radiation shielding door frame for a clean installation and seamless integration with surrounding wall structures.
- Built for long-term use: The reinforced door structure offers excellent resistance to impact, scratches, and corrosion. Stable performance is maintained even in facilities with frequent daily operation.

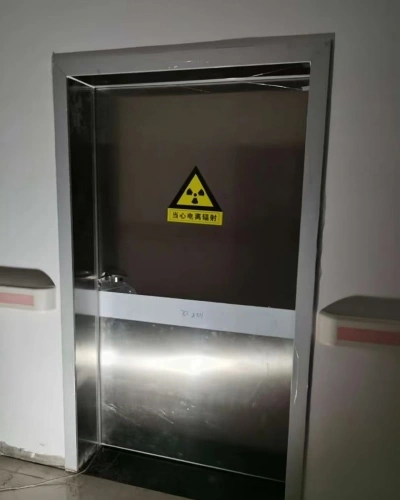

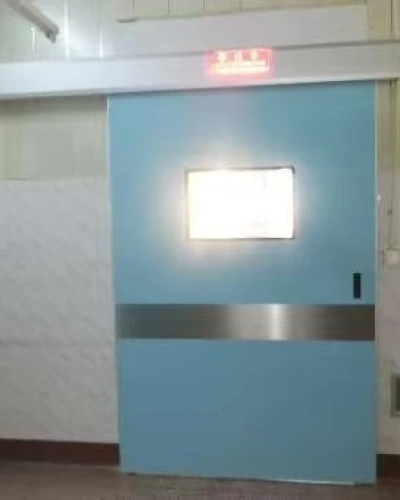

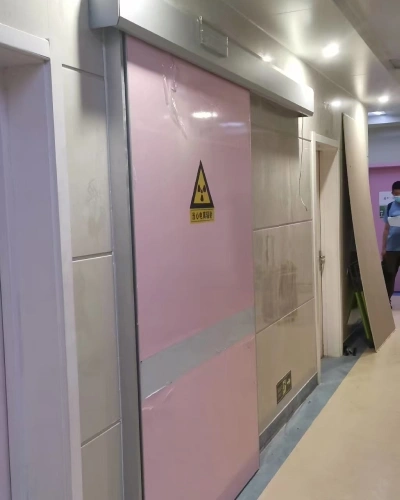

Lead Lined Doors are widely used in hospital radiology departments, X-ray rooms, CT rooms, imaging centres, diagnostic facilities, and other areas where radiation shielding is required.
