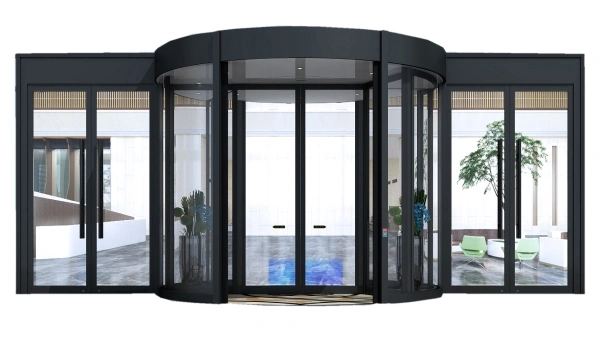

Automatic Revolving Doors
Two-wing automatic revolving doors are used for wider building entrances that need smooth pedestrian movement, better indoor climate control, and a more spacious entrance layout. Two synchronized door wings allow people to enter and exit at the same time while keeping traffic directions organized.
The main structure is made with high-strength aluminum alloy and can be adapted to different entrance layouts. The center leaves can be configured as a sliding door or swing door to create a wider passage for projects with heavier foot traffic. Finish, glass, showcase, air curtain, and UPS backup options are available for different architectural and operational requirements.
Customization Options
- Surface Finish Fluorocarbon coating, stainless steel cladding, or copper cladding
- Sliding Door / Swing Door The revolving door can be configured with a central sliding door or central swing door
- Glass Standard glass or ultra-clear glass
- UPS Backup Power Available with or without UPS backup power
- Display Showcase Available with or without display showcases
- Air Curtain Available with or without an air curtain.
Revolving doors and cylindrical portals can be customized to the entrance layout, including the door size, finish, color, and glass specifications. If the project has special requirements, our team can review the site conditions and suggest a configuration that fits the space and daily access needs.
Customization Process
- 01
Customer provides the project information
- 02
Design proposal prepared within 24 hours
- 03
Drawing confirmation
- 04
Product sample provided and confirmed if needed
- 05
Production takes around 20–30 days
- 06
Finished revolving door delivered to the port within 1–2 hours
- 07
Customer receives the goods
- 08
After-sales support begins

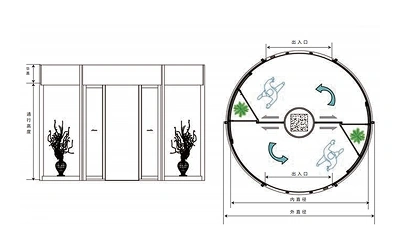

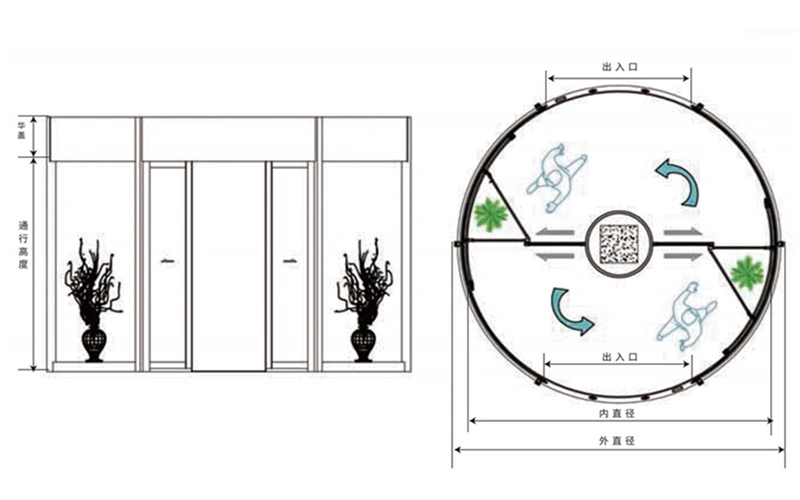

| Internal Diameter (D1) | 3,600 | 4,200 | 4,800 |
| External Diameter (D2) | 3,808 | 4,408 | 5,008 |
| Opening Width (Revolving) (W1) | 1,600 | 1,900 | 2,200 |
| Opening Width (Sliding) (W2) | 1,638 | 1,938 | 2,238 |
| Canopy Height (H1) | 300–700 | 300–700 | 300–700 |
| Passage Height (H2) | 2,200–3,500 | 2,200–3,500 | 2,200–3,500 |
- Rated Voltage 220 V AC, 50 Hz
- Rated Current 6 A
- Total Rated Power 1000 W
- Door Motor 250 W (Optional: 370 W) × 2
- Sliding Door Motor 80 W
- Lighting Power 4 W
- Control System Power 100 W
- Ambient Temperature -30 °C to +50 °C
- UPS Capacity 1000VA
- Low Speed Adjustment Range 0.5–2.5 rpm
- High Speed Adjustment Range 1.0–6.0 rpm
- Lighting Voltage 12 V
The two-way synchronized rotation helps people enter and exit without interrupting each other. Infrared sensors start the door automatically, so users do not need to touch the door during entry. This makes the revolving door suitable for entrances with frequent pedestrian traffic, with a pedestrian throughput over 30% higher than conventional swing doors.
During normal operation revolving doors help prevent interior air from escaping directly to the outside every time someone goes through, which results in approximately 25% lower air-conditioning energy use than typical automatic doors, and also better control of wind, dust, noise and heat transfer.
Multiple anti-pinch and anti-collision sensors monitor people and obstacles around the door in real time. If the door meets resistance, it reverses automatically, and an emergency stop button is included as standard. During power failure or emergency situations, the door can switch to fire escape mode to support faster evacuation.
The simple circular frame matches modern building façades and keeps the entrance light instead of bulky. Custom glass options can be selected to bring more natural light into the space, improve visibility, and make the entrance feel more open.

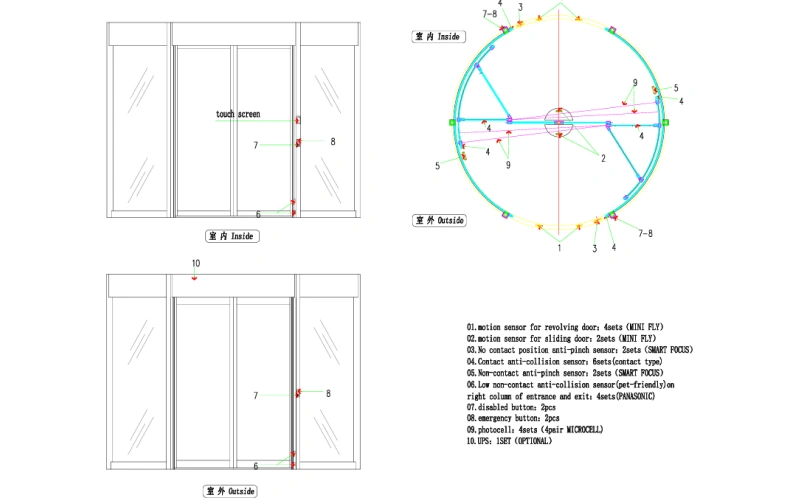

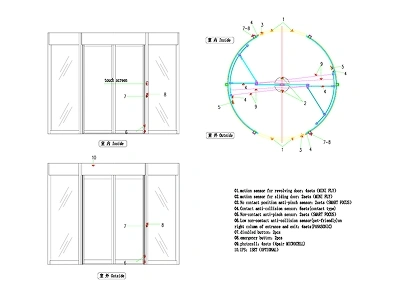

- 01
Motion Sensors for Revolving Door: 4 sets (MINI FLY)
- 02
Motion Sensors for Sliding Door: 2 sets (MINI FLY)
- 03
Non-Contact Anti-Pinch Position Sensors: 2 sets
- 04
Contact Anti-Collision Sensors: 6 sets, contact type
- 05
Contact Anti-Collision Sensors: 6 sets, contact type
- 06
Low-Level Non-Contact Anti-Collision Sensors: 4 sets
- 07
Disabled Access Buttons: 2 pcs
- 08
Emergency Stop Buttons: 2 pcs
- 09
Photocells: 4 sets / 4 pairs (MICROCELL)
- 10
UPS Backup Power: 1 set, optional
Two-Wing Revolving Door with Showcase and Sliding Door PARD-TF2000A
Two-Wing Revolving Door with Sliding Door, without Showcases PARD-TF2000B

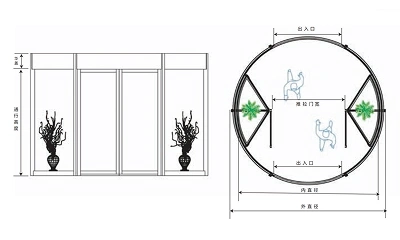

Two-Wing Breakout Automatic Revolving Door Center Door PARD-TF2000C

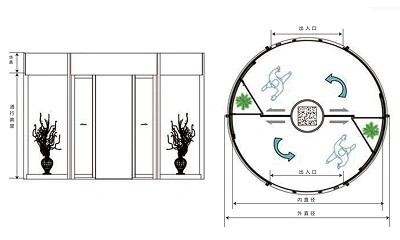

Column-Enclosing Two-Wing Revolving Door PARD-TF2000D

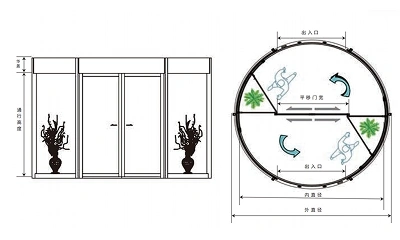

Extra-Tall Two-Wing Revolving Door PARD-TF2000UH

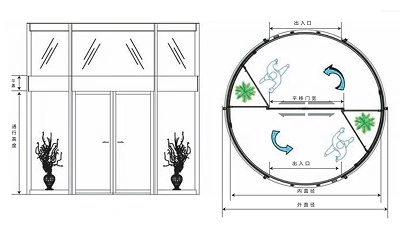

Two-Wing Automatic Revolving Door with Double-Layer Canopy PARD-TF2000DC

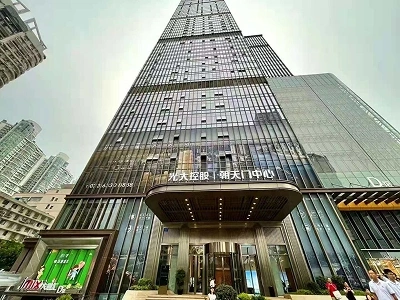

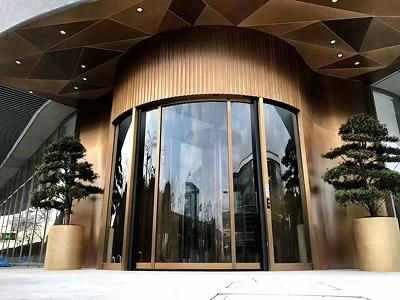

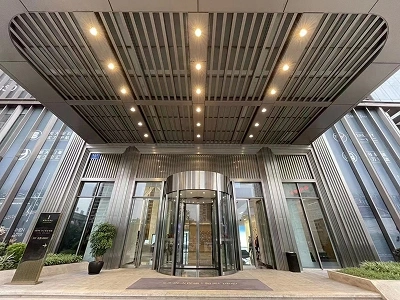

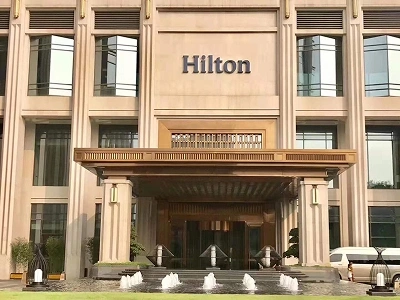

Two-wing automatic revolving doors are suitable for main entrances in buildings that need smooth access, a clean appearance, and better indoor-outdoor separation. They are commonly used in:
Our automatic two-wing revolving doors have CE, TUV, ISO 9001, and ISO 14001 certifications. We can also provide related test documents, including a one-million-cycle operation test report and a national standard test report.
